Eclipse Capella Integration



pxDoc - Capella Integration

This enabler provides full pxDoc capabilities to the Capella MBSE tool.

Installation

First make sure that XText v2.11 and pxDoc are already installed (if this is not the case: install pxDoc).
To install the enabler:

  • In Eclipse, Choose Help -> Install New Software... from the menu bar and Add....
  • Insert the http://www.pxdoc.fr/updates/pxdoc-capella/releases URL.
  • Select the pxDoc Capella Integration from the category pxDoc Integrations and complete the wizard by clicking the Next button until you can click Finish.
  • After a quick download and a restart of Eclipse, the pxDoc Capella enabler is ready to use.

You can also test the nightly built: update site nightly built

Quick start

Browse the examples

Once installed, you can import two examples dedicated to Capella :

  • the Full Model Generation example: this is a generic document generator based on EMF capabilities.
  • the Logical Architecture document generator: a custom document generator for Capella's Logical Architectures.

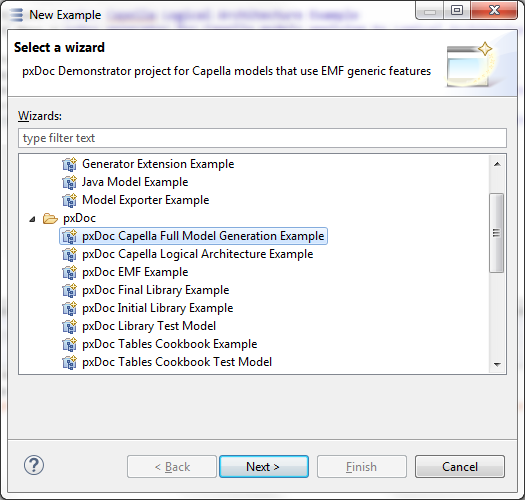

File -> New -> Example...

Note: The sample generators are included as plugins in the enabler, so you can launch them directly from a model, without installing the examples.

Note: The Full Model generator includes all diagrams available, for each element described. The document generation can take a while on large models as diagrams have to be converted by Capella before including them in the Word document.

Initialize a new pxDoc generator

See Project creation for more details on pxDoc projects creation.

First create an empty pxDoc project, with File -> New -> Project... and select the pxDoc Project wizard.

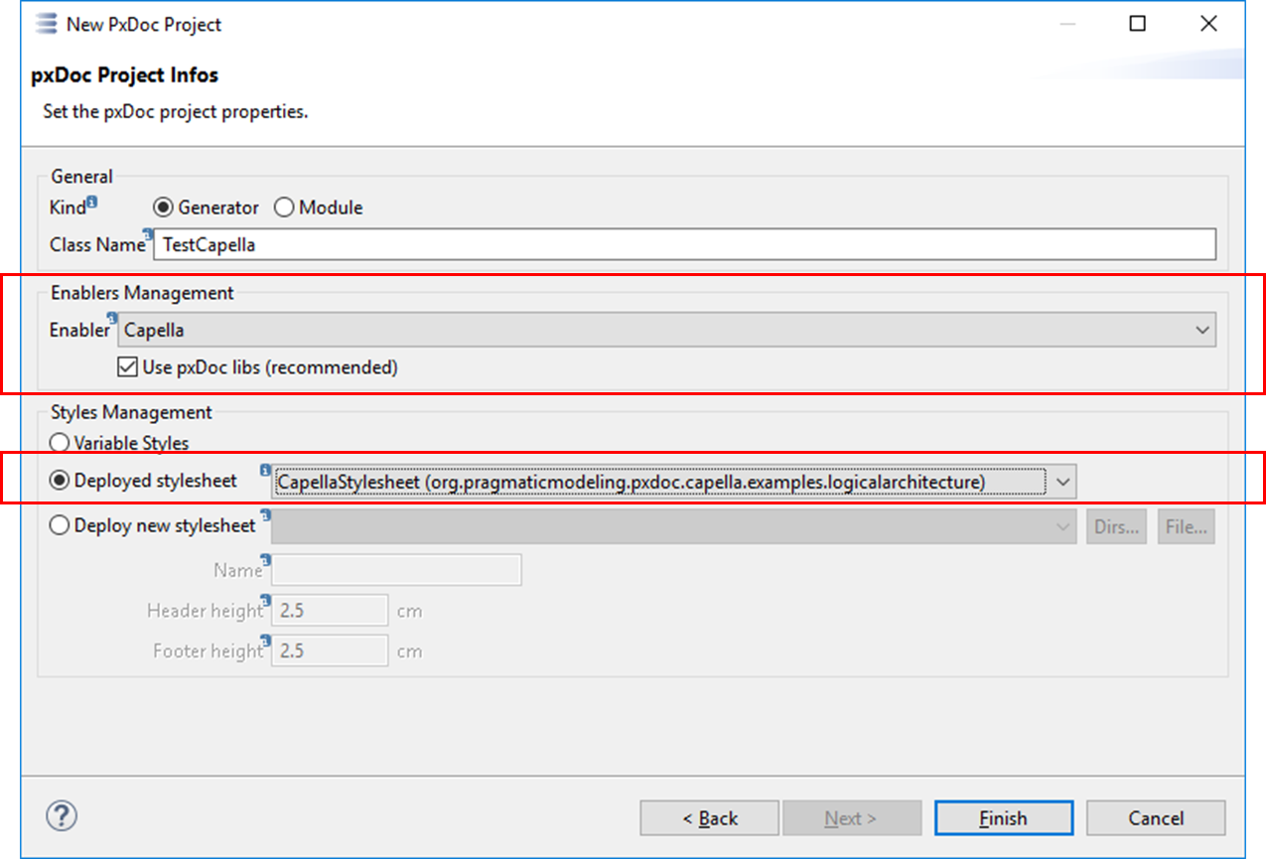

In the second page of the wizard (see screenshot below), select the Capella enabler. If you do not want the common libraries (common modules and associated means) to be automatically imported in your project, un-check the checkbox.

If you do not have a Word stylesheet (.dotx file) available, you can select the one deployed in the EMF Generic Generator

Click on finish.

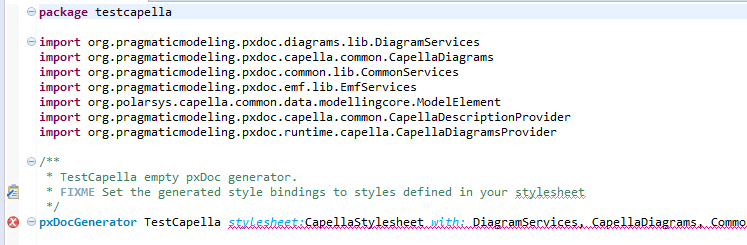

First, the pxDoc project itself is created and the .pxdoc file opens. You may notice errors in this project during few seconds:

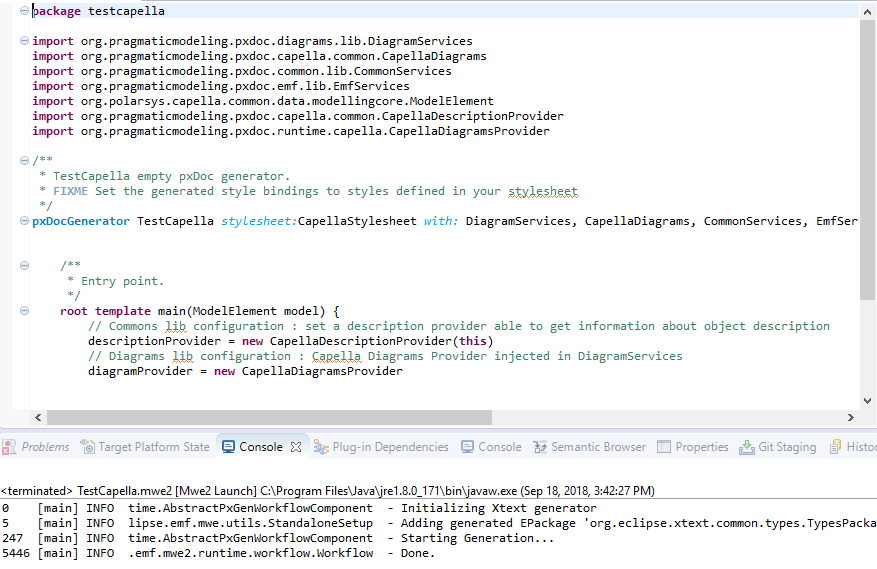

These errors are automatically solved with the second step of the project creation:

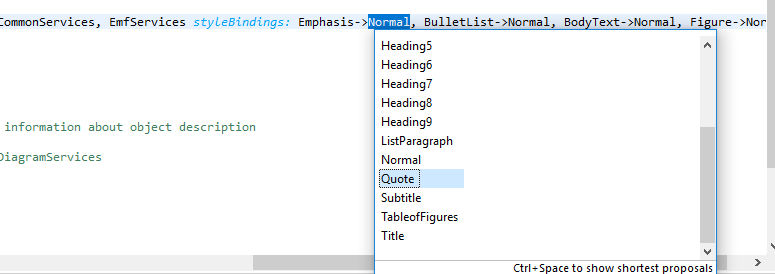

If you included the Common Libraries, your last step is to properly bind the variable styles from the modules with the chosen stylesheet: use CTRL-SPACE to get all available styles (from the stylesheet) suggested.

Your pxDoc generator is ready to use with a Capella model.

Do not hesitate to go through the provided examples and the Common Libraries documentation to learn quickly how to rule with pxDoc!

Launching the generation

To test or launch your generator,:

    1. select Debug As or Run As -> Eclipse Application.

In Debug mode, the modifications made to your generator are automatically taken into account, so you just need to re-launch the generation in the 2nd Eclipse to see the result.

  1. Import your source model, data... in this 2nd Eclipse
  2. To enable the pxDoc menu, right click on a relevant object of this source (according to the command object defined in the root template of your Generator: LogicalArchitecture...).

The launching wizard will pop up

.

Refer to 5min tutorial and to the 15 min tutorial to get a better view on generation launching!

Use the pxDoc common libs in your generator

If you did not uncheck the Use pxDoc libs in the project creation wizard, you can take benefits of the pxDoc Common Libraries and of the Capella Common Library.

With these libraries, your generator is ready to:

  • Use the Capella Description Provider to benefits from the CommonServices and EmfServices to include the description of an element (incl. its icon, attributes...) in several formats (table, bullet point)
  • Query and include Capella diagrams (takes into account the Visible In Documentation attribute)
  • Use some specific templates and functions from the Capella common library

NB: Have a look at the examples to see how the common libs are used!

If you unchecked the Use pxDoc libs checkbox, you can of course import manually the Modules and plugins. Do not forget to add the relevant dependencies to the MANIFEST.MF of the project.

Query and include Capella Diagrams

Below are some sample queries you can use:


								// diagrams marked as 'Visible in documentation'
								var List<Diagram> diagrams = queryDiagrams(pNamespace).visibleInDoc.execute;

								// diagrams owned by the 'model' object
								var List<Diagram> ownedDiagrams = queryDiagrams(model).execute;

								// all diagrams owned directly and indirectly by the 'model' object
								var List<Diagram> allOwnedDiagrams = queryDiagrams(model).searchNested.execute;

								// diagrams owned by the 'model' object, with some content
								var List<Diagram> ownedNonEmptyDiagrams = queryDiagrams(model).notEmpty.execute;

								// look for a diagram owned by 'model' and named 'A diagram name'
								var List<Diagram> diagramsByName = queryDiagrams(model).name('A diagram name').execute;

								// look for a diagram owned by 'model' with name staring with 'ABC'
								var List<Diagram> diagramsByNameStartingWith = queryDiagrams(model).nameStartsWith('ABC').execute;

								// diagrams by type
								var List<Diagram> diagramsByType_CDB = queryDiagrams(model).type('CDB').execute;

								// diagrams with type 'CDB' and name starting with 'MyString'
								var List<Diagram> cdbStartingWithMyString = queryDiagrams(model).type('CDB').nameStartsWith('MyString').
									execute;

<

To include the diagrams:</>


								// Your defined query
								var List<Diagram> myDiagramQueryName = queryDiagrams(model).execute;

								// Use the template from the DiagramsService module
								// (as you can see, you can apply a template directly on a List of objects: no need to define explicitly a loop!)
								apply includeDiagram(myDiagramQueryName)

								// OR insert the diagram image by yourself...
								for (diagram : myDiagrams) {

						// use the pxdoc 'image' keyword with diagram image file path
						// stored in the 'path' diagram attribute (was 'data' in pxDoc v1.1 and previous).
						image path:diagram.path
						// add a title with a style
						#Figure keepWithNext align:center {
						diagram.name
						}
						// include diagram documentation if any
						if (!diagram.documentation.empty) {
							#BodyText {diagram.documentation}
						}
					}

And you can get the source diagram object to extract some information from it (get the semantic elements...):


					for (diagram : myDiagrams) {
						var myDiagramObject=diagram.diagramObject as DDiagram

						// Do whatever you need with the object...
					}

Find the project on GitLab

You can find the source project on GitLab: https://gitlab.com/pxdoc/pxdoc-capella.

Get support on pxDoc

Read the documentation on www.pxdoc.fr.
